The INGE dizzer® XL 0.9 MB 60 W is a widely recognized pressurized UF module used in large-scale water treatment systems. Engineers searching for this model typically need its membrane area, module dimensions, fiber structure, operating limits, and chemical compatibility. This guide organizes the available technical information into a clear engineering reference and also introduces compatible UF options for retrofit projects.
What Is the INGE dizzer® XL 0.9 MB 60 W?

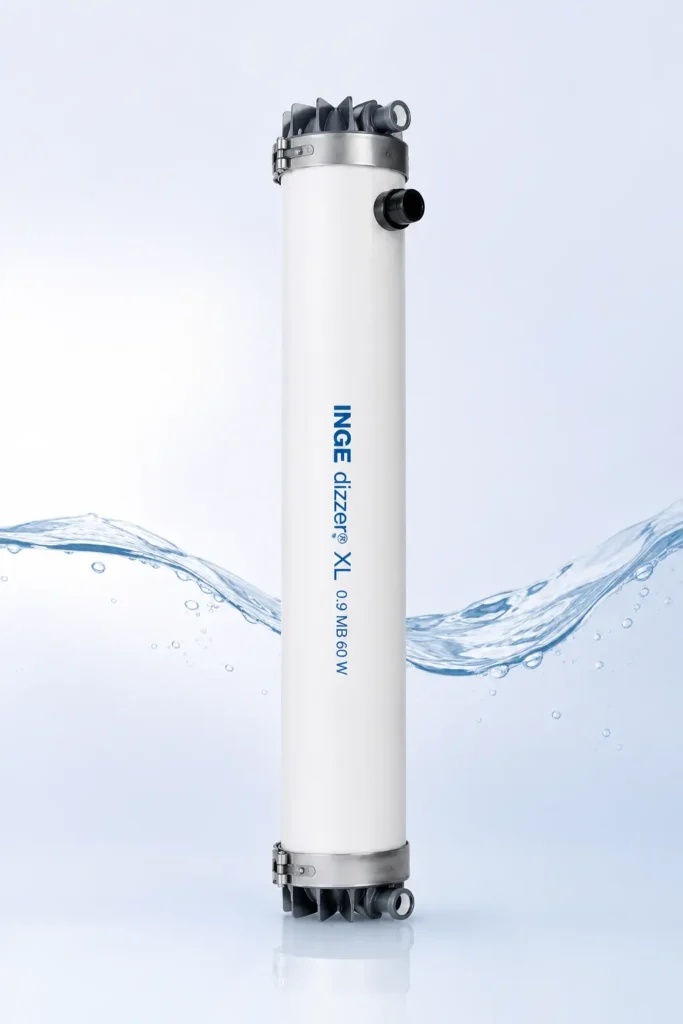

The INGE dizzer® XL 0.9 MB 60 W is a pressurized ultrafiltration module designed for large-scale water treatment applications. It uses Multibore® 0.9 PESM hollow fiber membranes and provides 60 m² of active membrane area in a compact PVC-U housing.
The module provides 60 m² of active membrane area in a compact PVC-U housing. Its plug-and-play design and 2-inch flexible Victaulic connections simplify installation in UF systems. The following sections summarize its dimensions, membrane structure, operating limits, and cleaning parameters based on the available technical specification.
INGE dizzer® XL 0.9 MB 60 W Technical Specifications
Table 1 summarizes the main material, membrane, housing, and connection specifications published for the INGE dizzer® XL 0.9 MB 60 W.
| Parameter | Specification |
|---|---|
| Model | INGE dizzer® XL 0.9 MB 60 W |
| Part Number | VK-0068 |
| Active Membrane Area | 60 m² / 645 sq. ft. |
| Membrane Material | PESM |
| Membrane Structure | Multibore® 0.9 hollow fiber |
| Capillaries per Fiber | 7 |
| Nominal Pore Size | Approx. 0.02 μm |
| Housing | PVC-U, white |
| End Cap | PVC-U, grey |
| End Cap Coupling | Stainless steel, EPDM sealing |
| Flexible Connection | 2-inch Victaulic® |
| Wet Weight | 55 kg / 120 lb |
Table 1. Main Technical Specifications
Note: The specifications listed above are based on inge GmbH’s published technical documentation. Actual operating conditions may vary depending on feed water quality, system design, and operating parameters.
INGE dizzer® XL 0.9 MB 60 W UF Membrane Dimensions

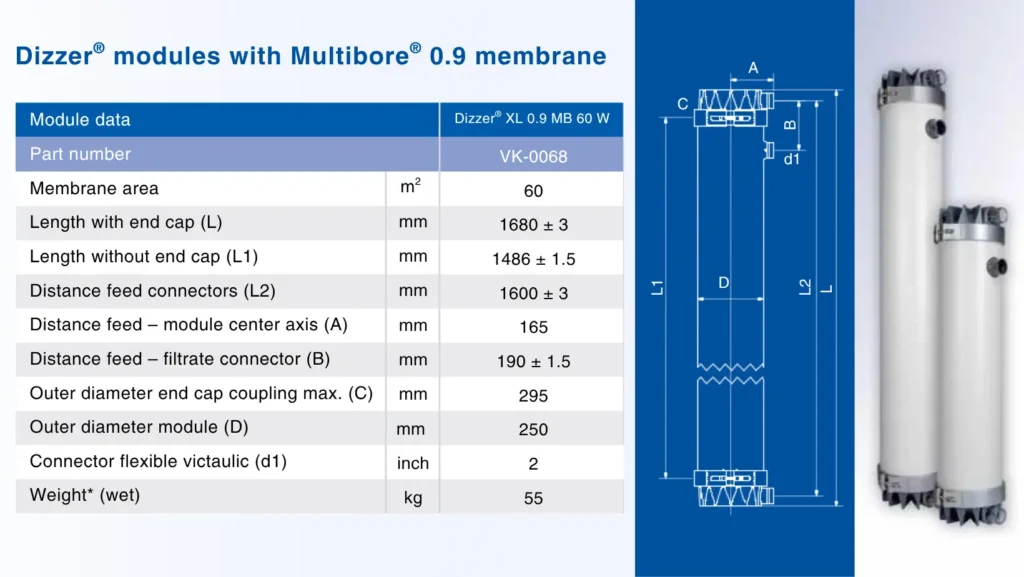

Figure 2 and Table 2 summarize the dimensional references of a single INGE dizzer® XL 0.9 MB 60 W module. The overall length with end caps is 1,680 ± 3 mm, while the module body has an outside diameter of 250 mm.
| Parameter | Symbol | Value |
|---|---|---|
| Membrane Area | — | 60 m² |
| Length with End Cap | L | 1680 ± 3 mm |
| Length without End Cap | L1 | 1486 ± 1.5 mm |
| Distance Between Feed Connectors | L2 | 1600 ± 3 mm |
| Feed Connector to Module Center Axis | A | 165 mm |
| Feed Connector to Filtrate Connector | B | 190 ± 1.5 mm |
| Maximum End Cap Coupling Diameter | C | 295 mm |
| Module Outside Diameter | D | 250 mm |
| Flexible Victaulic® Connection | d1 | 2 inch |
| Wet Weight | — | 55 kg |
Table 2. Overall dimensions of the INGE dizzer® XL 0.9 MB 60 W UF membrane module.
Dimensional values are based on inge GmbH’s published technical specification.

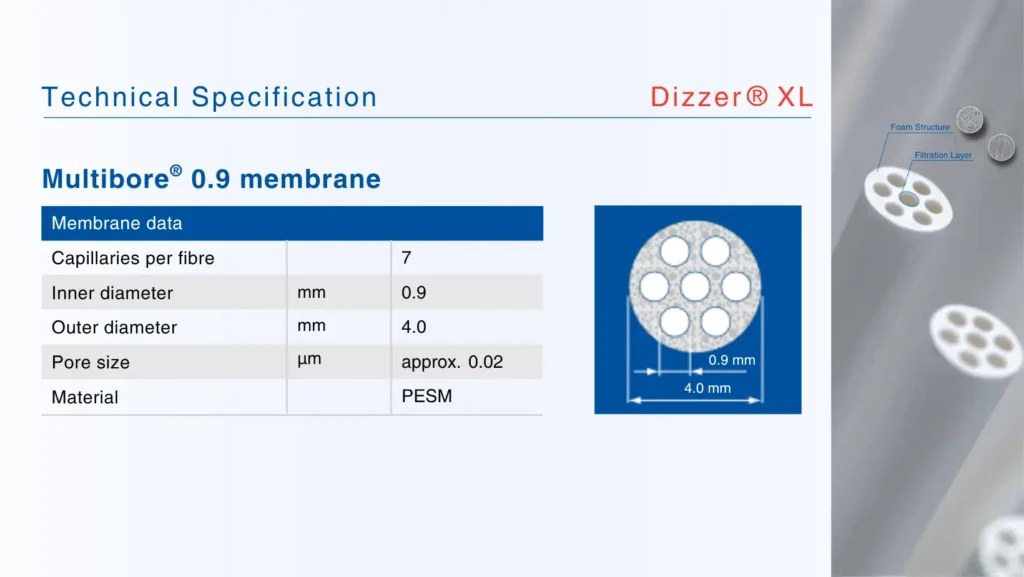

INGE dizzer® XL 0.9 MB 60 W Membrane Fiber Characteristics
The module uses Multibore® 0.9 hollow fibers made from PESM. Each fiber contains seven internal capillaries and has an outside diameter of 4.0 mm, an internal capillary diameter of 0.9 mm, and an approximate pore size of 0.02 μm.
The multi-capillary structure is designed to improve fiber rigidity and mechanical stability compared with conventional single-lumen hollow fibers.
| Membrane Material | PESM (Modified Polyethersulfone) |
| Fiber Structure | Multibore® Hollow Fiber |
| Number of Capillaries | 7 |
| Outside Diameter | 4.0 mm |
| Inside Diameter | 0.9 mm |
| Nominal Pore Size | 0.02 μm |
Table 3. Membrane Fiber Specifications
Engineering Note: Membrane material and fiber geometry are important, but actual UF performance also depends on manufacturing quality, module design, feed water conditions, and operating strategy.
Typical Operating Parameters
Tables 4 and 5 summarize the operating limits and allowable chemical exposure values published by inge GmbH.
Operating Conditions
| Parameter | Specification |
|---|---|
| Maximum Operating Pressure | 5 bar (73 psi) |
| Operating Temperature | 1–40°C (34–104°F) |
| Filtration Flux | 60–180 L/(m²·h) |
| Standard Backwash Flux | 230 L/(m²·h) |
| Backwash Flux Range | 230–300 L/(m²·h) |
| Filtration TMP | 0.1–1.5 bar |
| Standard Backwash Pressure | 0.3–3.0 bar |
| Membrane Burst Pressure | >10 bar |
Table 4. Typical Operating Parameters
Chemical Resistance
| Cleaning Chemical | Maximum Allowable Value |
|---|---|
| Free Chlorine | 200 ppm |
| Free Chlorine Exposure | 200,000 ppm × h (at pH ≥ 9.5) |
| Hydrogen Peroxide | 500 ppm |
| Caustic Soda | pH ≤ 13 |
| Acid Cleaning | pH ≥ 1 |
Table 5. Chemical Resistance
The values above are published technical limits under common operating conditions. They should not automatically be used as project design setpoints. Actual filtration flux, TMP, backwash conditions, and cleaning strategy should be selected according to feed water quality and system design.
Typical Applications
Based on its membrane area, pore size, pressure rating, and Multibore® configuration, the module is commonly considered for the following UF applications:
- Drinking Water Production – Surface water and groundwater treatment for potable water supply.
- Industrial Process Water – Filtration for manufacturing processes requiring consistent water quality.
- RO Pretreatment – Pretreatment before reverse osmosis (RO) systems to reduce suspended solids and improve RO performance.
- Water Reuse – Municipal and industrial water reclamation projects where ultrafiltration is used before further treatment or reuse.
The module is suitable for both new installations and the expansion or upgrading of existing ultrafiltration systems, depending on the overall process design and operating requirements.
Looking for a Compatible UF Membrane?
If you are looking for a compatible alternative to the INGE dizzer® XL 0.9 MB 60 W, SPERTA can help.
SPERTA has extensive experience supplying compatible UF membrane modules for replacement projects involving internationally recognized membrane brands. Rather than simply matching the module dimensions, we evaluate membrane area, operating conditions, hydraulic configuration, and long-term system performance to help customers select an appropriate replacement solution.
Our engineering team evaluates module dimensions, membrane area, operating conditions, and system configuration to recommend a compatible solution that fits your project requirements. Whether you are planning routine membrane replacement, capacity expansion, or system refurbishment, we can provide technical support throughout the evaluation process.
If you are considering a replacement for the INGE dizzer® XL 0.9 MB 60 W, feel free to contact SPERTA for technical consultation and compatible UF membrane solutions.
Source Note: The technical specifications summarized in this article are based on publicly available product documentation originally published by inge GmbH. Users should verify the latest specifications with the current product documentation before system design or procurement.
Trademark Notice: INGE, dizzer®, and Multibore® are trademarks of their respective owners. Product names are used for identification and technical reference purposes only. SPERTA is not affiliated with or endorsed by the trademark owner.
