Drop-in Fit for 500S / 500SA-Type Systems · Minimal System Modification Required

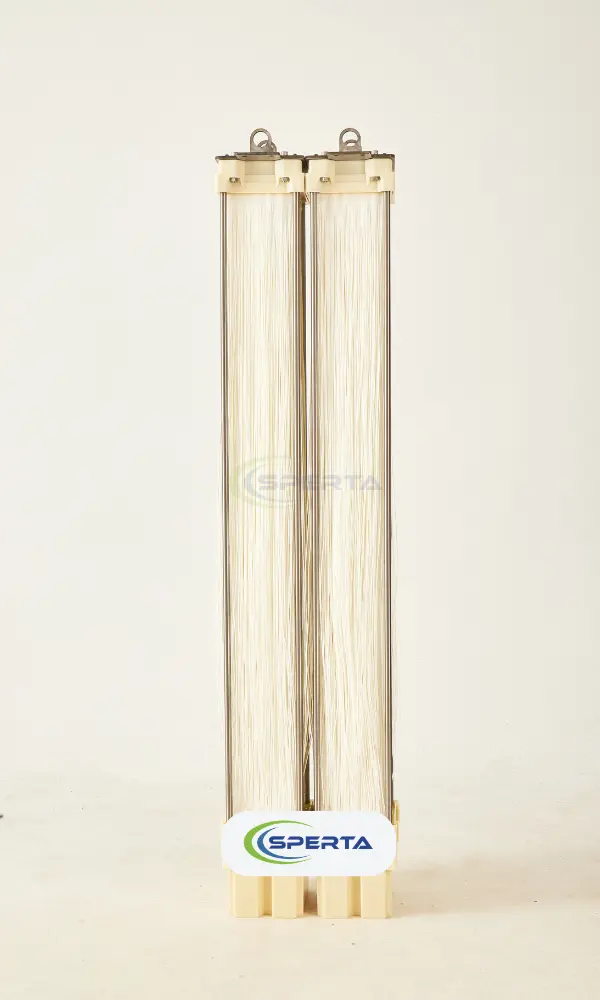

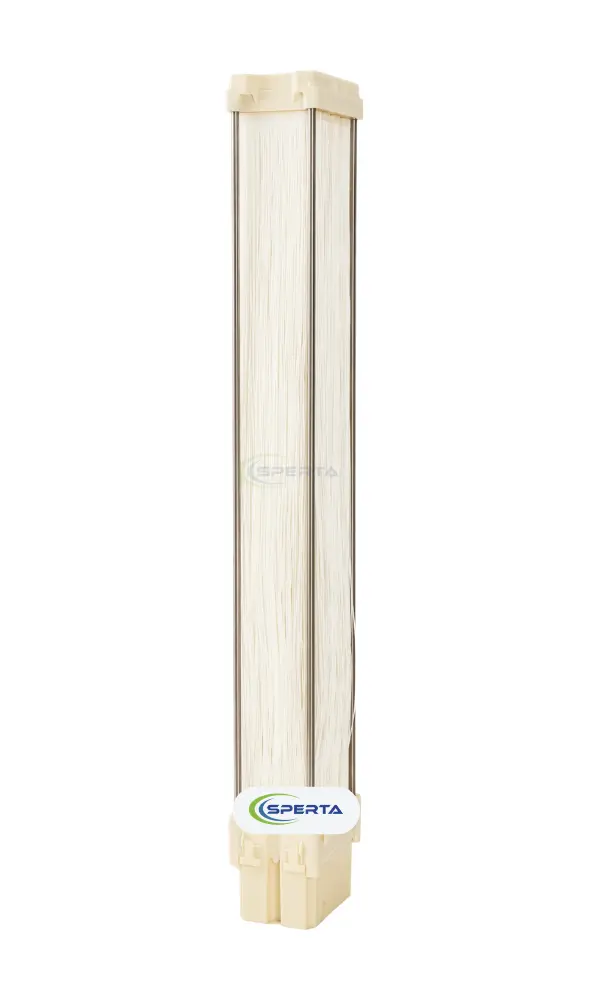

SPERTA 500S-Type MBR membrane element is designed for compatibility with standard 500S-type system configurations. It matches typical module dimensions, connection layout, and operating characteristics, enabling straightforward integration and stable operation.
Manufactured with PVDF hollow fiber membrane (~0.04 μm), it offers reliable filtration performance, strong chemical resistance, and consistent long-term operation.
This membrane element is designed to match key structural aspects of standard 500S / 500SA-type systems, including dimensions, connection interface, and installation layout.
| Product | Height mm (in) | Depth mm (in) | Width mm (in) |
Nominal Surface Area m² (ft²) | Membrane Material |
Nominal Pore Size (μm) | Surface Properties |
Fiber Diameter (mm) | Flow Path |
|---|---|---|---|---|---|---|---|---|---|
| SP-500S | 1780.3 (70.1) | 277 (10.9) | 217 (8.5) | 27.9 (300) | PVDF | 0.04 | Non-ionic & Hydrophilic | OD: 1.9 ID: 0.8 | Outside-In |
| TMP Range kPa (psig) | Max. Operating Temp. °C (°F) | Operating pH Range | Max. Cleaning Temp. °C (°F) | Cleaning pH Range | Max. Cl₂ Concentration |
|---|---|---|---|---|---|
| −55 to 55 (−8 to 8) | 40 (104) | 5.0 to 9.5 | 40 (104) | 2.0 to 10.5 | 1000 ppm |
* Specifications based on standard SP-500S configuration. Contact SPERTA for project-specific requirements or custom configurations.
Each 500S replacement project starts from the existing 500SA cassette — not from a standard datasheet. Before proposing a membrane model, we verify how your current system actually operates.
Manufactured in our dedicated membrane production facility with strict process control to ensure consistent membrane quality and performance.
SPERTA uses high-strength braided reinforcement tubes to provide internal mechanical support for membrane fibers. Standard tensile strength reaches over 200N, with higher-strength options available upon request.
Reinforcement tubes are produced through automated continuous production lines, ensuring stable output quality and enabling fast availability through efficient inventory management.
SPERTA utilizes proprietary membrane fiber formation techniques to create a uniform PVDF layer on the reinforcement structure, ensuring consistent pore distribution and strong anti-fouling performance.
After initial performance inspection, membrane fibers are cut to required lengths based on module design specifications, ensuring dimensional accuracy for downstream assembly.

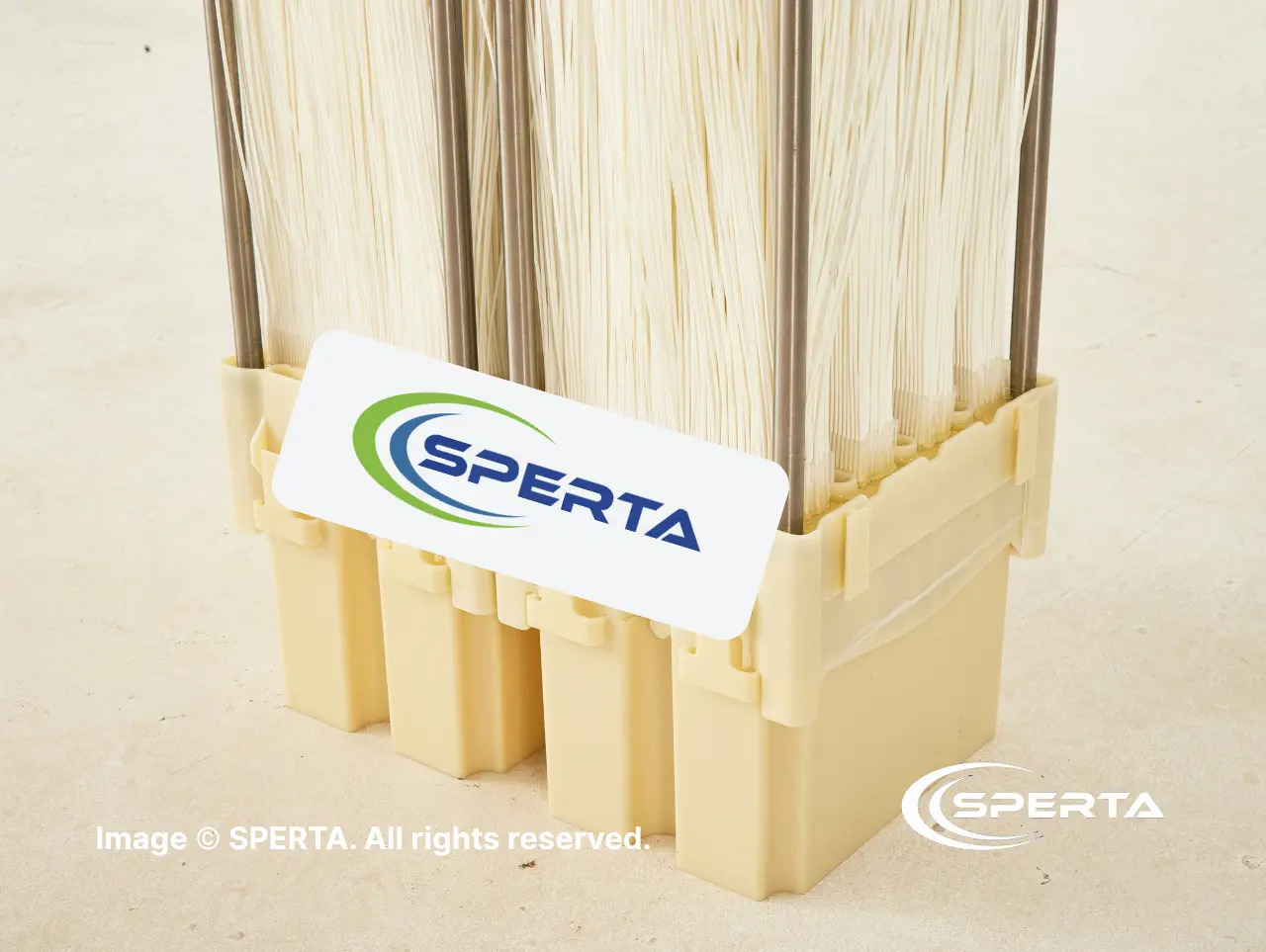

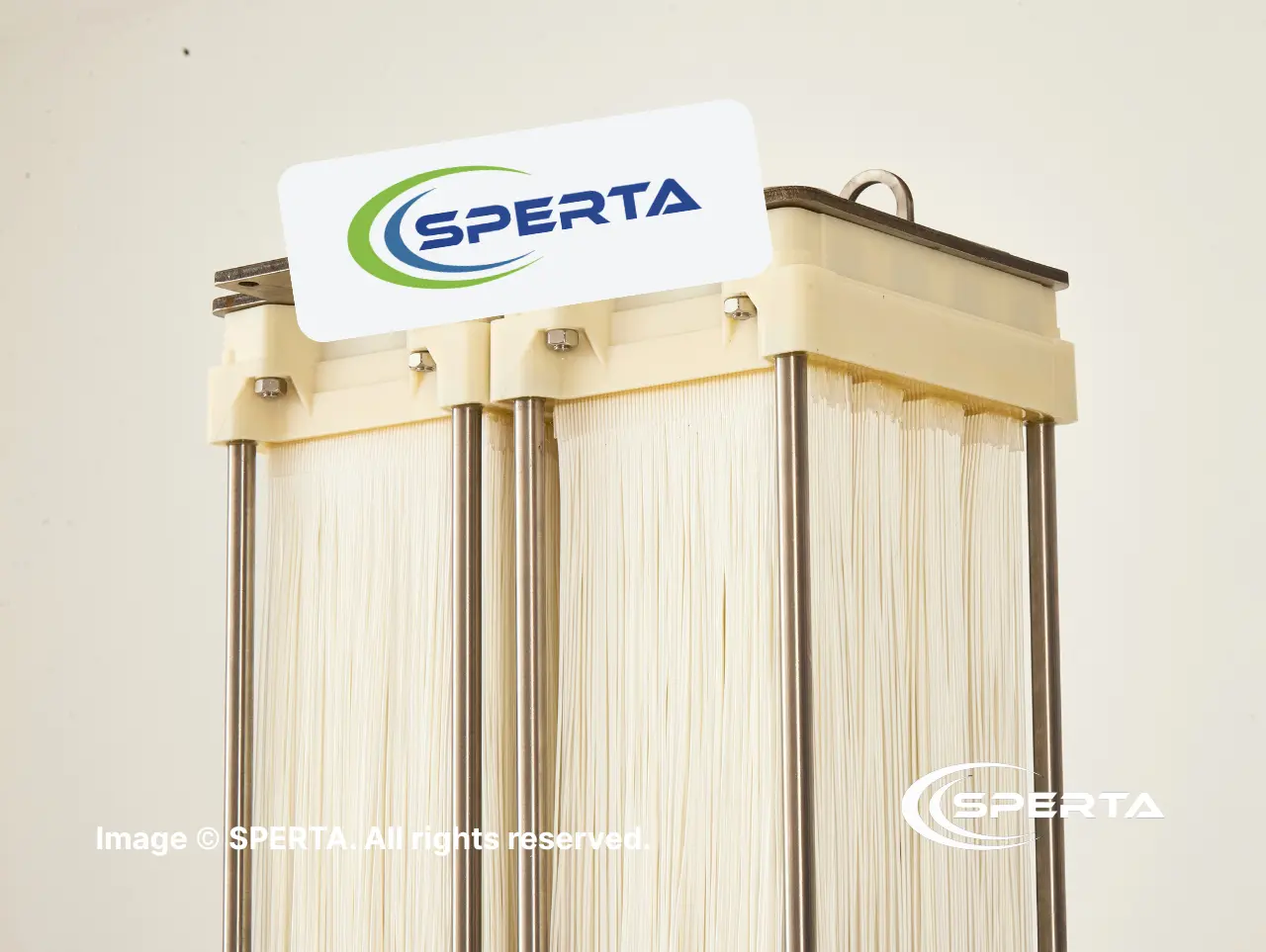

Membrane fibers are precisely potted using high-strength epoxy resin and assembled into 500S modules, ensuring reliable sealing, structural stability, and uniform permeate collection.
Each membrane module undergoes water testing to verify structural integrity and stable filtration performance before it is cleared for packaging and shipment.
Packaging is customized based on transport and project requirements — using export-grade protective crates to ensure product safety and cleanliness during international delivery.
Products are shipped globally and delivered ready for cassette assembly or direct system integration — supporting both new MBR installations and large-scale membrane replacement projects.
All membrane components are produced and inspected in-house — from fiber spinning to final module assembly. Every SPERTA 500S module is manufactured under strict quality control standards, ensuring consistent performance and reliable long-term operation.
